高处作业
H-RAIL OVERHEAD
高空作业需要可靠的锚定装置,但传统的解决方案通常不美观或具有限制工作区域的缺点。H-RAIL 轨道系统是一种灵活且安全的解决方案,其特点是视觉影响最小。由于其结构设计,H-RAIL 需要很少的固定点,就可以让用户在不同的配置中搭建刚性锚固线。H-RAIL 是高空作业的理想选择,无论是区域限制,还是悬挂作业。
使用 H-RAIL OVERHEAD 高处作业

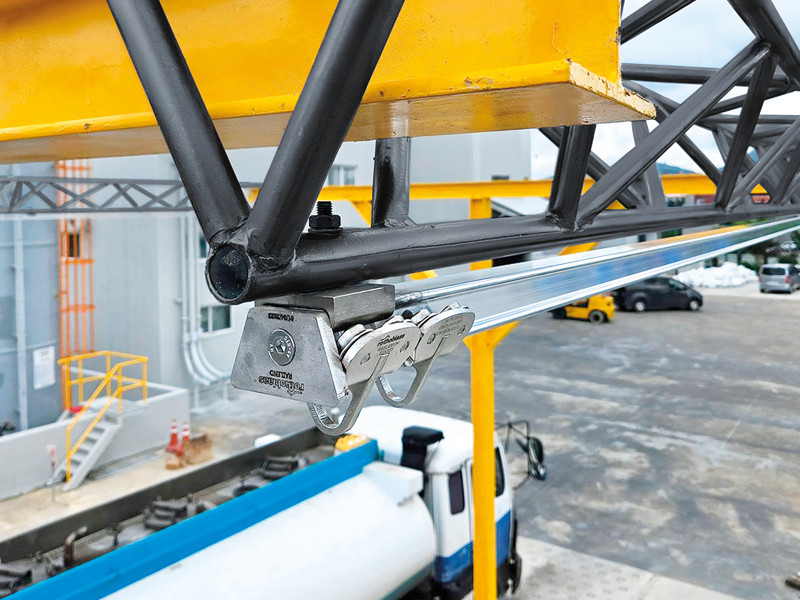

H-RAIL 系统经过专门设计,可与配备四个轮子的特殊滑动装置配合使用,非常适合在高空防坠落和悬挂作业。

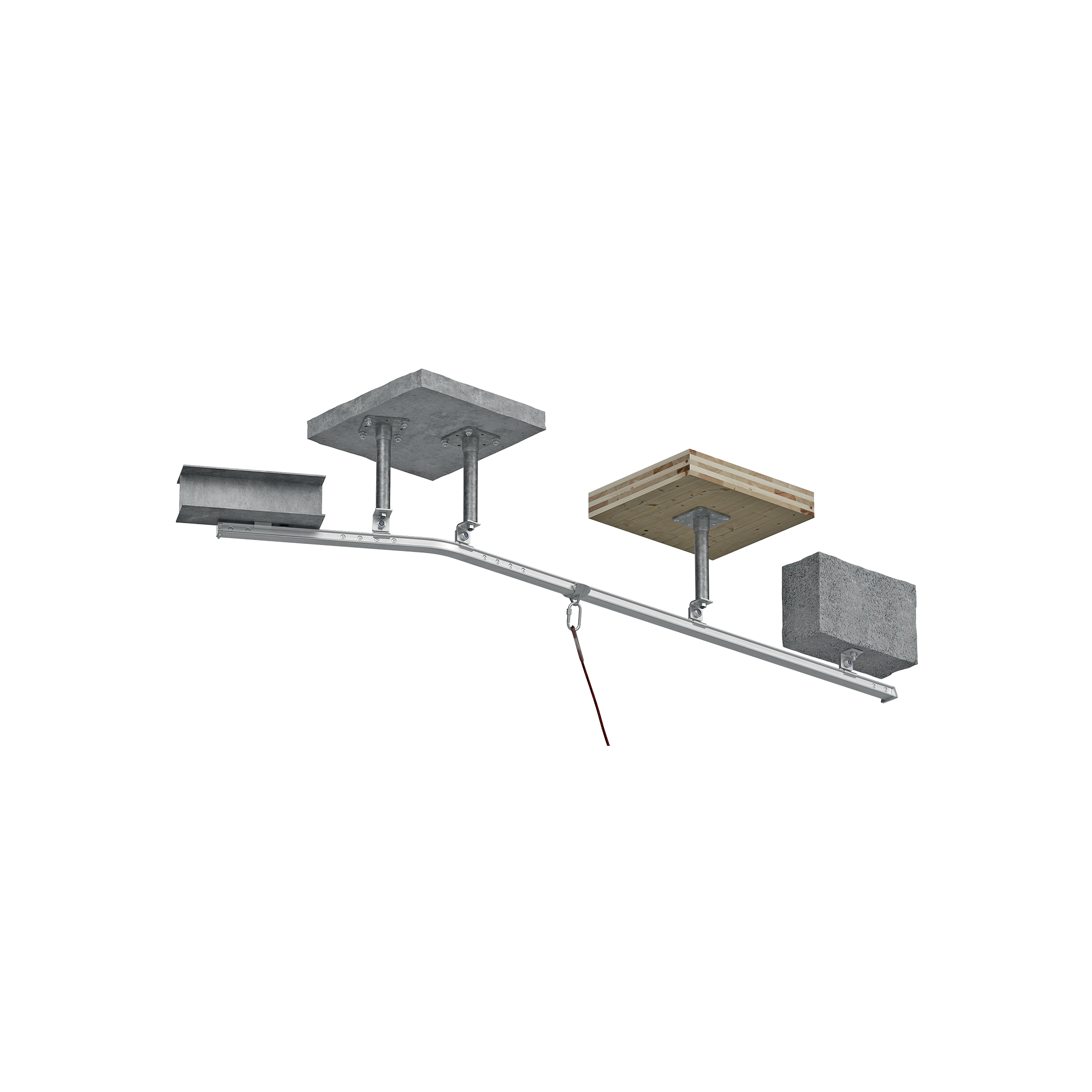

H-RAIL 的多功能性使其能够安装在不同类型的结构上(钢、木材或混凝土),满足每种安装需求。与其他可用型号不同,H-RAIL OVERHEAD 安装在承重结构下方,而 H-RAIL ON WALL 安装在墙壁上,H-RAIL ON FLOOR 安装在屋顶上。
H-RAIL 安装过程中立柱之间的间距高达 6 米,仅需要几个固定点,就能完成安装。
什么是高处作业?
高处作业是指 2 米以上有坠落风险的任何类型的施工操作,每一步都需要保证操作员的人身安全,防止坠落。通常,为了进行建筑外墙维护等工作,尤其是在大型建筑物上,会采用悬挂吊篮(BMU)等笨重的解决方案。然而,这些方案需要满足大空间和一定的安装需求,必须从建筑设计阶段就要考虑到这一点。H-RAIL 因其简易和轻便性而提供了一种具有卓越性能的替代解决方案。
Rothoblaas 的 H-RAIL OVERHEAD 是安全高空作业以及屋顶和外墙维护的优质产品。作为一种可靠实用的创新解决方案,这种锚固系统适用于任何类型结构,可以为操作员提供最大程度的保护。其安装极其简单,不需要复杂的砌筑工作,保证了卓越的装配效率。符合人体工程学的紧凑设计与周围的建筑和谐地融为一体,保护了当地建筑的美感。
H-RAIL 采用极高品质的耐用材料制成,可为施工操作员和用户提供持久保护,安心又安全。凭借其多功能性和可靠性,该产品成为工业维护和住宅建筑干预等广泛场景应用的理想选择,有助于提高安全标准并保护高空作业人员的生命安全。
文件
技术数据表
|
|
---|---|
符合性声明(DOC)
|
|
安全规程、安装和使用说明
|
|
File BIM.ifc
|
|
File BIM.rfa
|
|
符合性声明(DOC)
|
操作规程
安装手册 |
---|
RAIL
CODE | description | pcs. |
---|---|---|
RAIL3000 | 3m aluminium rail | 1 |
RAILC90 | 90° aluminium bend for rail | 1 |
RAILC120 | 120° aluminium bend for rail | 1 |
RAILC135 | 135° aluminium bend for rail | 1 |
RAILC150 | 150° aluminium bend for rail | 1 |
SUPPORT
CODE | description | pcs. |
---|---|---|
RAILBRAT | support element for rail | 1 |
RAILBRAT12 | M12 plate for RAILBRAT | 1 |
RAILBRAT16 | M16 plate for RAILBRAT | 1 |
RAILBRATW | for fixing on wood | 1 |
RAILBRAS | for direct fixing on steel | 1 |
TERMINAL ELEMENT
CODE | description | pcs. |
---|---|---|
RAILEND | rail end-stop without exit | 1 |
RAILENDOPEN | rail end-stop with exit | 1 |
JOINT
CODE | description | pcs. |
---|---|---|
RAILJUN | junction for rails and bends | 1 |
SLIDING DEVICE
CODE | description | pcs. |
---|---|---|
RAILSLIDE | sliding device | 1 |
RAILSLIDEOH | slide for overhead application | 1 |
TOOL
CODE | description | pcs. |
---|---|---|
RAILJUNTOOL | template for rail junction holes | 1 |
RAILPLATE | Rail system ID plate | 1 |
FASTENING
CODE | description | pcs. |
---|---|---|
RAILOCKSCREW | Lock screw | 250 |
RAILSCREW | DIN 7991 A2-70 | 50 |
TARGAHORxy
CODE | description | pcs. |
---|---|---|
TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
